MT772 – RAZR MT

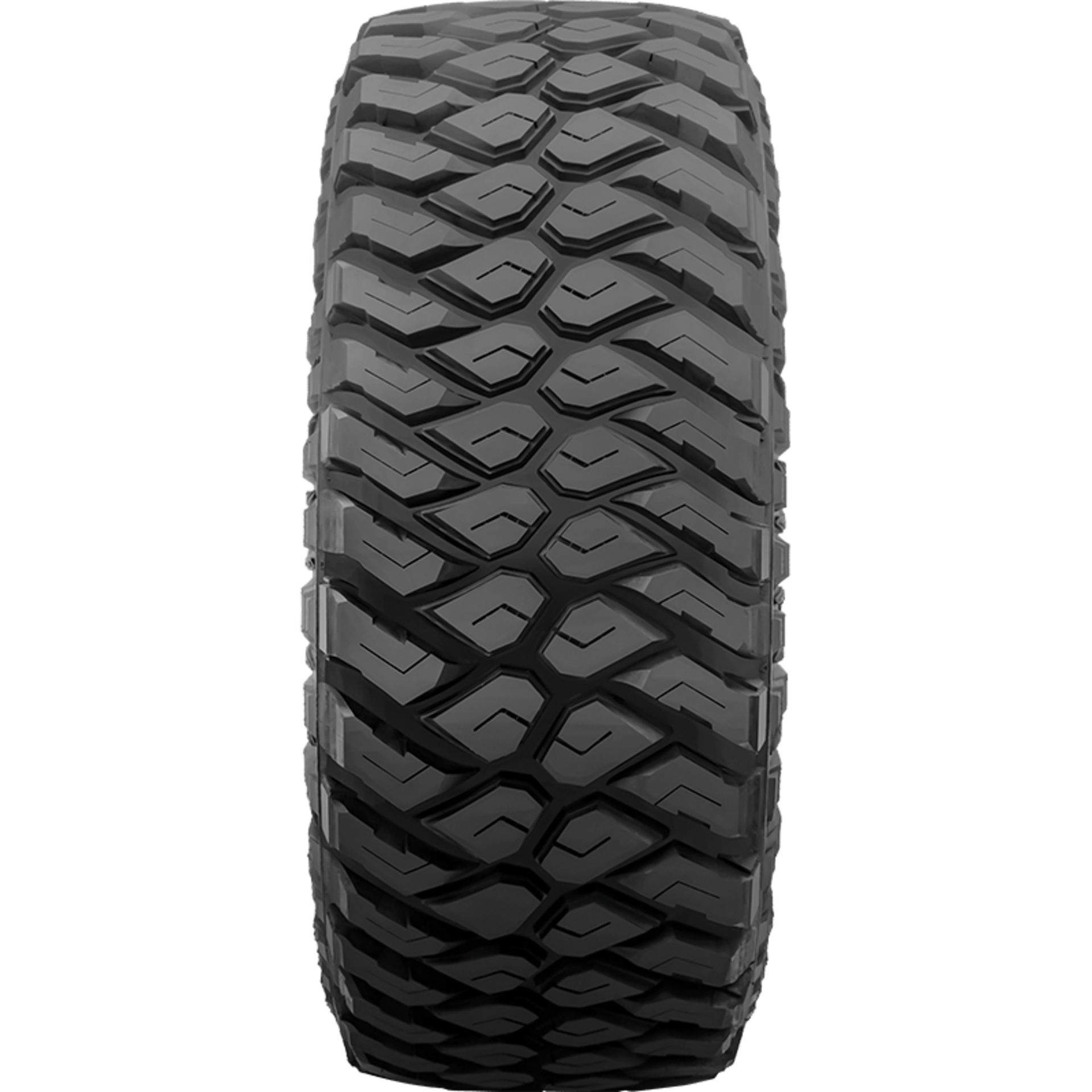

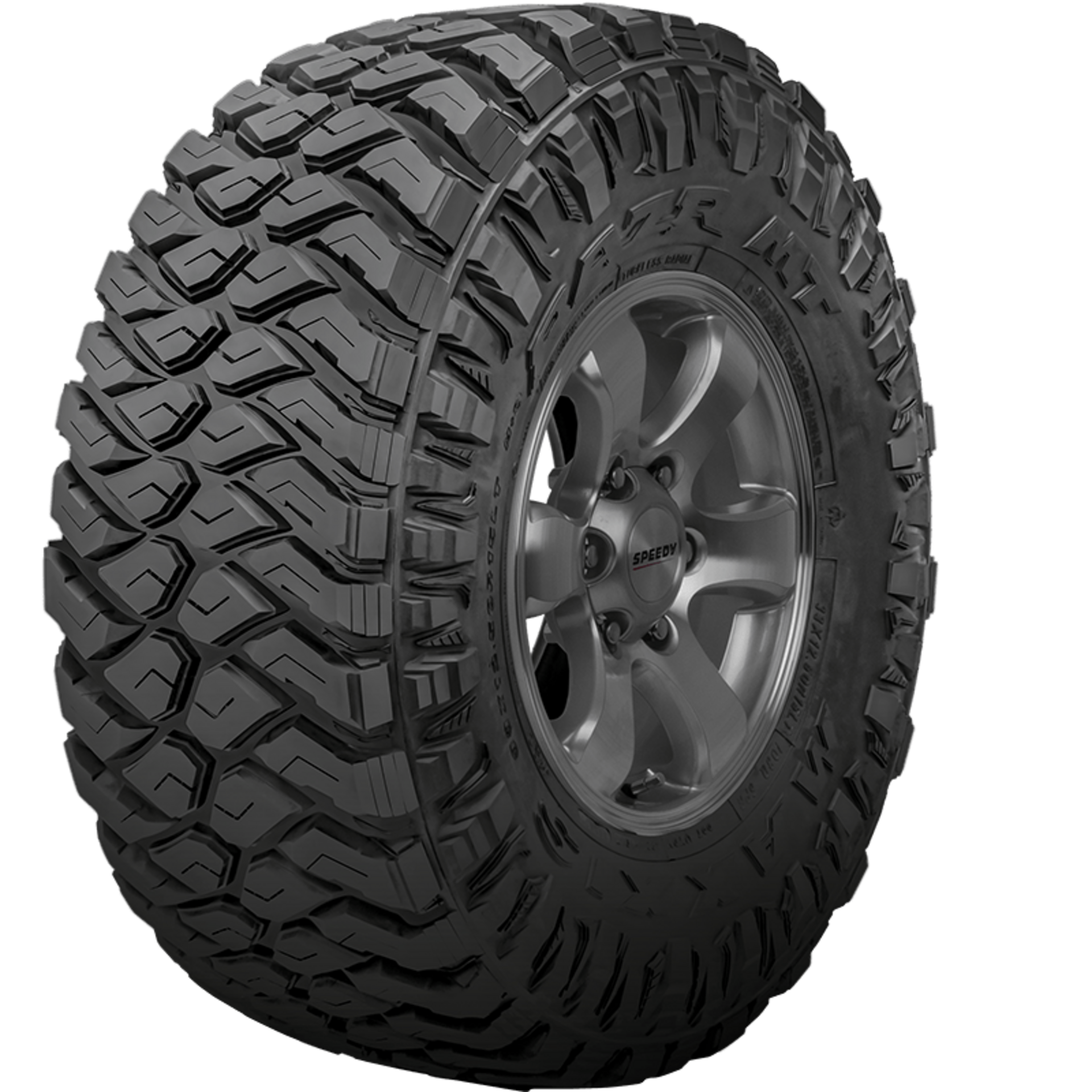

The Maxxis RAZR MT772 pattern features deeply sculpted centre blocks for excellent mud traction, while stone and mud ejectors improve self-cleaning performance and minimise rock retention. An innovative armour sidewall design maximises sidewall traction and puncture resistance, while deeply staggered shoulder blocks provide additional traction in difficult terrains.

Features

Vehicle Indicator

Driving Applications

On-Road

15%

Off-Road

85%

Specs

TYRE SIZE	PLY RATING	LOAD/SPEED RATING	SIDEWALL	OVERALL DIAMETER (MM)	SECTION WIDTH (MM)	MAX LOAD (KG)	TREAD DEPTH (MM)	RIM WIDTH (MM)

14 In

15 In

TYRE SIZE	PLY RATING	LOAD/SPEED RATING	SIDEWALL	OVERALL DIAMETER (MM)	SECTION WIDTH (MM)	MAX LOAD (KG)	TREAD DEPTH (MM)	RIM WIDTH (MM)
33x12.50R15LT	6PR	108Q	RBL	833.1	340.4	1000	15.88	10.0J
35x12.50R15LT	6PR	113Q	RBL	886.5	342.9	1150	15.88	10.0J

16 In

TYRE SIZE	PLY RATING	LOAD/SPEED RATING	SIDEWALL	OVERALL DIAMETER (MM)	SECTION WIDTH (MM)	MAX LOAD (KG)	TREAD DEPTH (MM)	RIM WIDTH (MM)
LT315/75R16	10PR	127/124Q	RBL	883.9	325.1	S1751/D1599	15.08	8.5J

17 In

TYRE SIZE	PLY RATING	LOAD/SPEED RATING	SIDEWALL	OVERALL DIAMETER (MM)	SECTION WIDTH (MM)	MAX LOAD (KG)	TREAD DEPTH (MM)	RIM WIDTH (MM)
LT265/65 R17	10PR	120/117Q	RBL	787.4	276.9	S1399/D1286	15.08	8.0J
LT285/70R17	10PR	121/118Q	RBL	838.2	302.3	S1449/D1320	14.29	8.5J
LT295/70R17	10PR	121/118Q	RBL	850.9	309.9	S1449/D1320	15.08	8.5J
LT315/70R17	8PR	121/118Q	RBL	878.8	337.8	S1449/D1320	15.08	9.5J
35x12.50R17LT	10PR	121Q	RBL	883.9	335.3	1449	15.88	10.0J
37x12.50R17LT	10PR	124Q	RBL	934.7	332.7	1599	15.88	10.0J
37x13.50R17LT	8PR	121Q	RBL	934.7	345.4	1449	15.88	11.0J
40x13.50R17LT	6PR	121Q	RBL	1013.5	363.2	1449	15.88	11.0J

18 In

TYRE SIZE	PLY RATING	LOAD/SPEED RATING	SIDEWALL	OVERALL DIAMETER (MM)	SECTION WIDTH (MM)	MAX LOAD (KG)	TREAD DEPTH (MM)	RIM WIDTH (MM)
LT265/60R18	10PR	119/116Q	RBL	782.3	271.8	S1361/D1250	15.08	8.0J
LT275/65 R18	10PR	123/120Q	RBL	825.5	281.9	S1549/D1399	14.29	8.0J
LT275/70R18	10PR	125/122Q	RBL	850.9	287.0	S1651/D1499	14.29	8.0J
LT285/65R18	10PR	125/122Q	RBL	833.1	292.1	S1651/D1499	15.08	8.5J
LT295/65R18	10PR	127/124Q	RBL	850.9	307.3	S1751/D1599	15.08	8.5J
LT295/70R18	10PR	129/126Q	RBL	878.8	312.4	S1851/D1701	15.08	8.5J
33X12.50R18LT	12PR	122Q	RBL	833.1	325.1	1499	15.88	10.0J
35X12.50R18LT	10PR	123Q	RBL	883.9	335.3	1549	15.88	10.0J

19 In

20 In

TYRE SIZE	PLY RATING	LOAD/SPEED RATING	SIDEWALL	OVERALL DIAMETER (MM)	SECTION WIDTH (MM)	MAX LOAD (KG)	TREAD DEPTH (MM)	RIM WIDTH (MM)
35X12.50R20LT	12PR	125Q	RBL	883.0	318.0	1651	15.88	10.0J

Heavy Duty 16 In

TYRE SIZE	PLY RATING	LOAD/SPEED RATING	SIDEWALL	OVERALL DIAMETER (MM)	SECTION WIDTH (MM)	MAX LOAD (KG)	TREAD DEPTH (MM)	RIM WIDTH (MM)
LT235/85R16	10PR	120/116Q	RBL	806	242	1400	14.29	6.5J
LT245/75R16	10PR	120/116Q	RBL	774	259	1400	14.29	7.0J
LT265/70R16	8PR	117/114Q	RBL	777	282	1285	15.08	8,0J
LT265/75R16	10PR	123/120Q	RBL	804	279	1550	14.29	7.5J
LT285/75R16	10PR	126/123Q	RBL	834	299	1700	14.29	8.0J

Heavy Duty 17 In

TYRE SIZE	PLY RATING	LOAD/SPEED RATING	SIDEWALL	OVERALL DIAMETER (MM)	SECTION WIDTH (MM)	MAX LOAD (KG)	TREAD DEPTH (MM)	RIM WIDTH (MM)
LT265/70R17	10PR	121/118Q	RBL	803	282	1450	13.49	8.0J
